Maintain and inspect the Zero Gravity Gen 2.0

Electronics

Steady Red light on controller box indicates run error. Restart system to troubleshoot errors. If problem recurs, system will switch to safe mode and Red light remains illuminated.

Spiral/Electric Wire

Inspect electric wires daily. Make sure all electric wires are free of rust, dirt, water,oil and any damage to insulation or plug. Replace spiral wire yearly.

Wire Rope

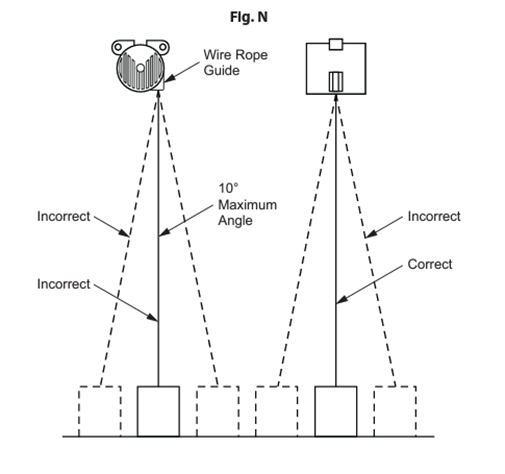

Do not yard wire rope more than 10 degrees from vertical center of wire rope guide (Fig. N). Excessive yarding will cause increased wear on the balancer and decrease the life of the components. Replace wire rope if frayed, kinked, or “bird caging” is visible.  Refer to the Product Maintenance Manual.

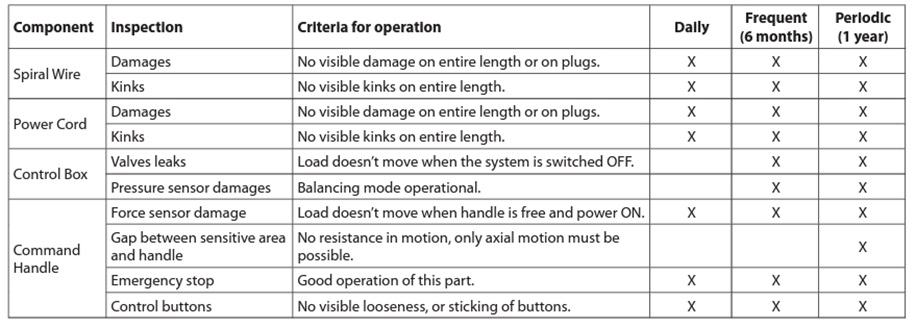

Maintenance Schedule

WARNING:  Disconnect the power supply before working on the equipment.  The unit must be repaired by qualified personnel; risk of electric shock.
